YS-SP130 雙工位給袋式包裝機
YS-SP130J Double-station bag filling and sealing machine
YS-SP130J雙工位給袋式包裝機
特點：
1、適用于酵素、果凍、果汁、藥液、枸杞原漿等液體、醬料物品的計量包裝。
Suitable for the metering and packaging of liquids and pastes like enzymes, jelly, fruit juices, liquid medicine, and wolfberry puree.
2、成品雙出，包裝流程全自動，無需人工操作?？筛鶕?jù)充填物料的性質選配不同的下料結構。

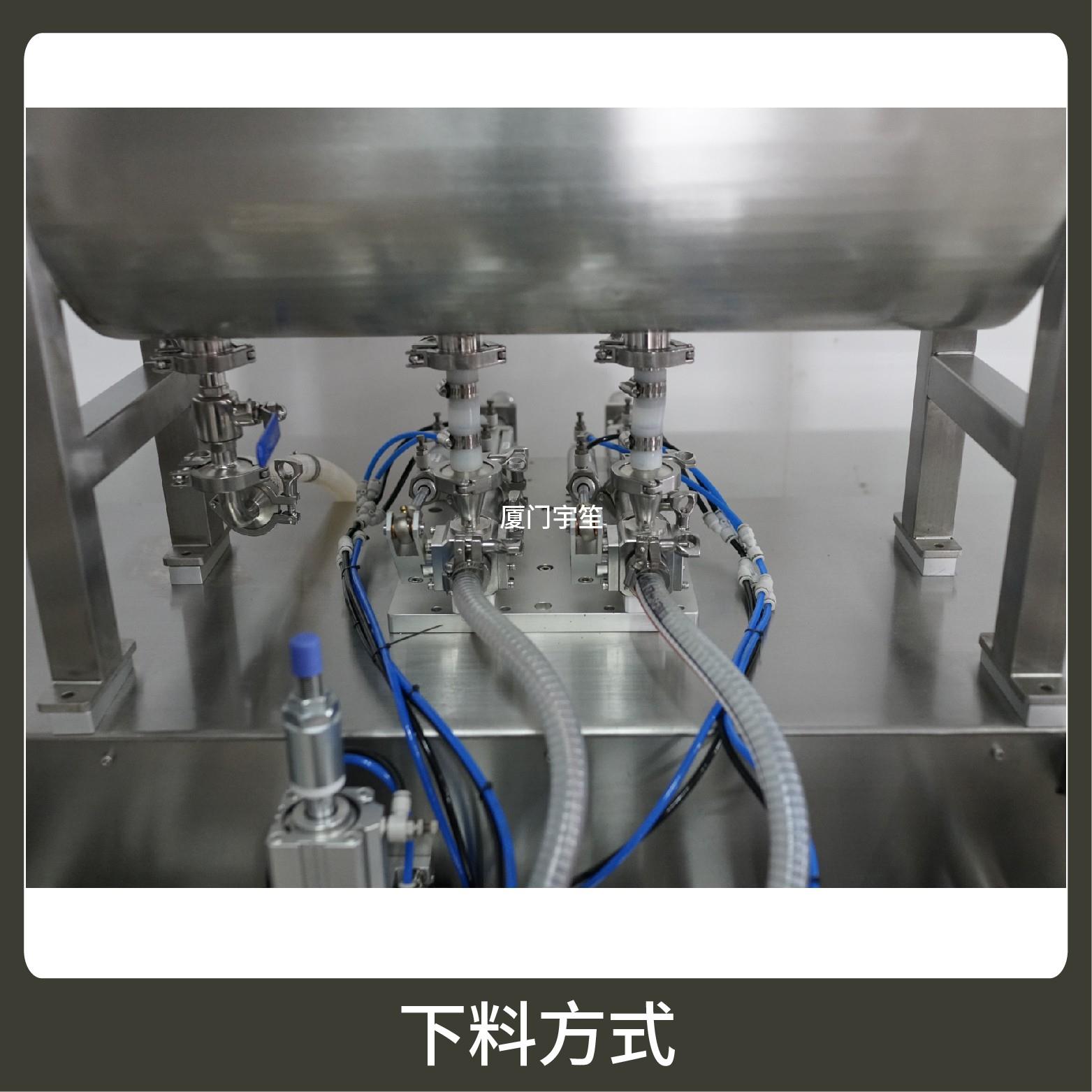

Double-out finished products, automatic packaging process, no manual operation. Different feeding structures can be selected according to the nature of filling materials
3、采用觸摸屏操作，PLC控制，封口溫度自動補償，控溫精準，封口美觀大方。
It adopts touch screen operation, PLC control, automatic compensation of sealing temperature, precise temperature control, and beautiful sealing.
4、包裝材料：復合膜，如：純鋁，鍍鋁等預制袋。
Packing material: composite film, such as: pure aluminum, aluminum plating and other prefabricated bags.
技術參數：
計量范圍：10-200g
Measuring Scope
預制袋：長 ( L ) ：80-180mm
Prefab bag 寬 ( W ) ：55-120mm
包裝速度：40-60bags / min
Packing Speed
外型尺寸：2192* 1356 * 1738 mm
Dimension ( L * W * H )
整機重量：550kg
Weight
總 功 率：AC220V / 50 - 60Hz / 4.5kw
Total Power
氣 源：≥0.6Mpa
Gas source
1、適用于酵素、果凍、果汁、藥液、枸杞原漿等液體、醬料物品的計量包裝。
Suitable for the metering and packaging of liquids and pastes like enzymes, jelly, fruit juices, liquid medicine, and wolfberry puree.
2、成品雙出，包裝流程全自動，無需人工操作?？筛鶕?jù)充填物料的性質選配不同的下料結構。
Double-out finished products, automatic packaging process, no manual operation. Different feeding structures can be selected according to the nature of filling materials
3、采用觸摸屏操作，PLC控制，封口溫度自動補償，控溫精準，封口美觀大方。
It adopts touch screen operation, PLC control, automatic compensation of sealing temperature, precise temperature control, and beautiful sealing.
4、包裝材料：復合膜，如：純鋁，鍍鋁等預制袋。
Packing material： composite film, such as： pure aluminum, aluminum plating and other prefabricated bags.
計量范圍：10-200g
Measuring Scope
預制袋：長 ( L ) ：80-180mm
Prefab bag 寬 ( W ) ：55-120mm
包裝速度：40-60bags / min
Packing Speed
外型尺寸：2192* 1356 * 1738 mm
Dimension ( L * W * H )
整機重量：550kg
Weight
總 功 率：AC220V / 50 - 60Hz / 4.5kw
Total Power
氣 源：≥0.6Mpa
Gas source
1、適用于酵素、果凍、果汁、藥液、枸杞原漿等液體、醬料物品的計量包裝。
Suitable for the metering and packaging of liquids and pastes like enzymes, jelly, fruit juices, liquid medicine, and wolfberry puree.
