YS-99C 異形袋雙列包裝機

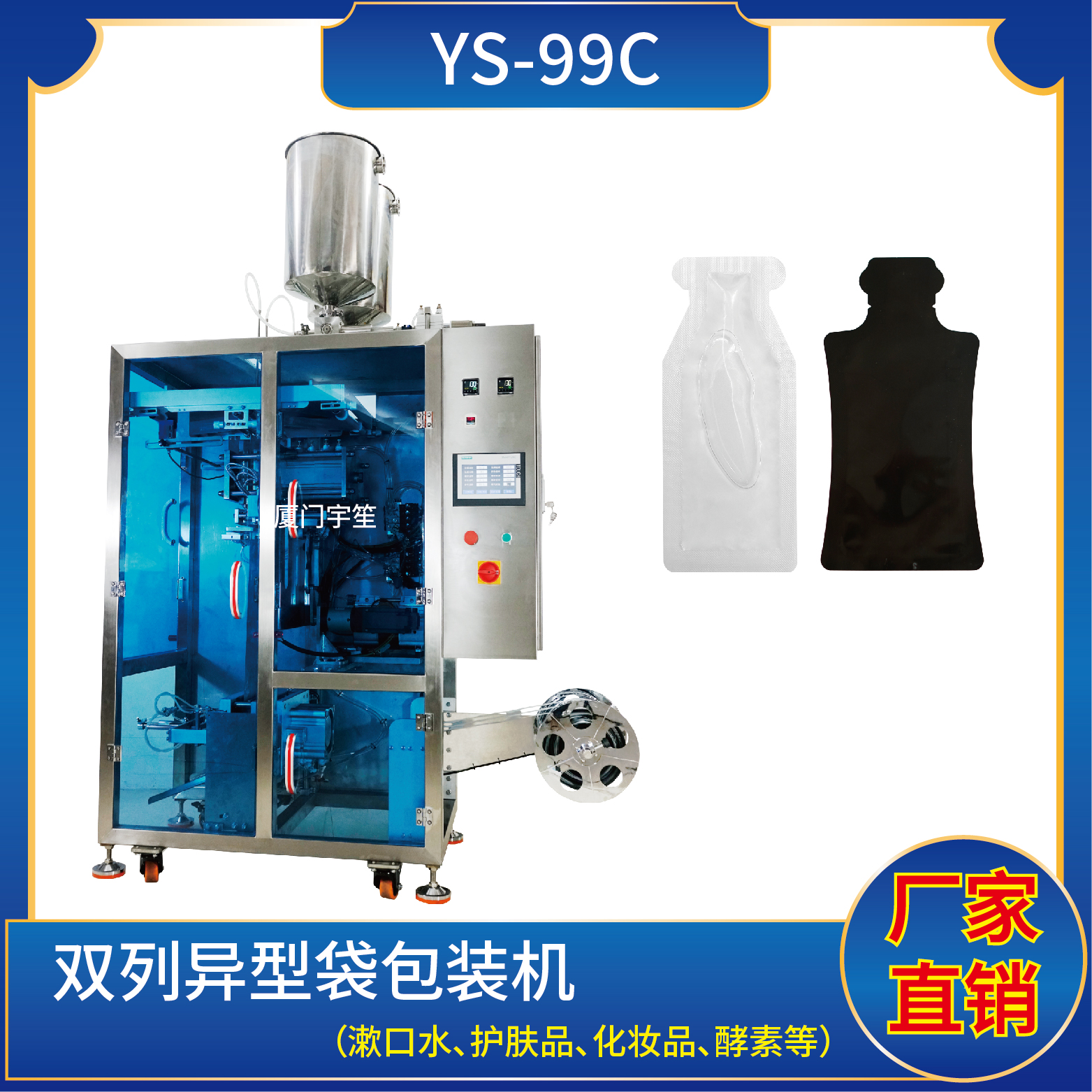

YS-99C Two lanes irregular shape sachet packing machine
YS-99C 異形袋雙列包裝機
特 點 Characteristic
１、適用于各行業中酵素、果汁、漱口水、洗護用品、染發劑、化妝品小樣等醬料、液體物品的雙列異形袋計量包裝。
Suitable for the double-row irregular bag metering and packaging of pastes and liquids like enzymes, fruit juices, mouthwash, toiletries, hair dyes, and cosmetic sample sachets in various industries.
２、可自動完成制袋、計量、下料、封合、分切、計數、且可根據客戶要求配置打印批號等功能。
All the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.
３、觸摸屏操作，PLC 控制，伺服電機控制袋長，性能穩定、調整方便、檢測準確。智能式溫控儀，PID調節，保證將溫度的誤差范圍控制在1℃以內。
The touch screen operation, PLC control, servo motor to control the bag length,stable performance, easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
4、智能開門報警停機，溫度偏高偏低報警停機，氣壓偏低報警停機。
Intelligent door alarm stop, high and low temperature alarm stop, low air pressure alarm stop.
5、包裝材料：復合膜。
Packaging materials：composite film.

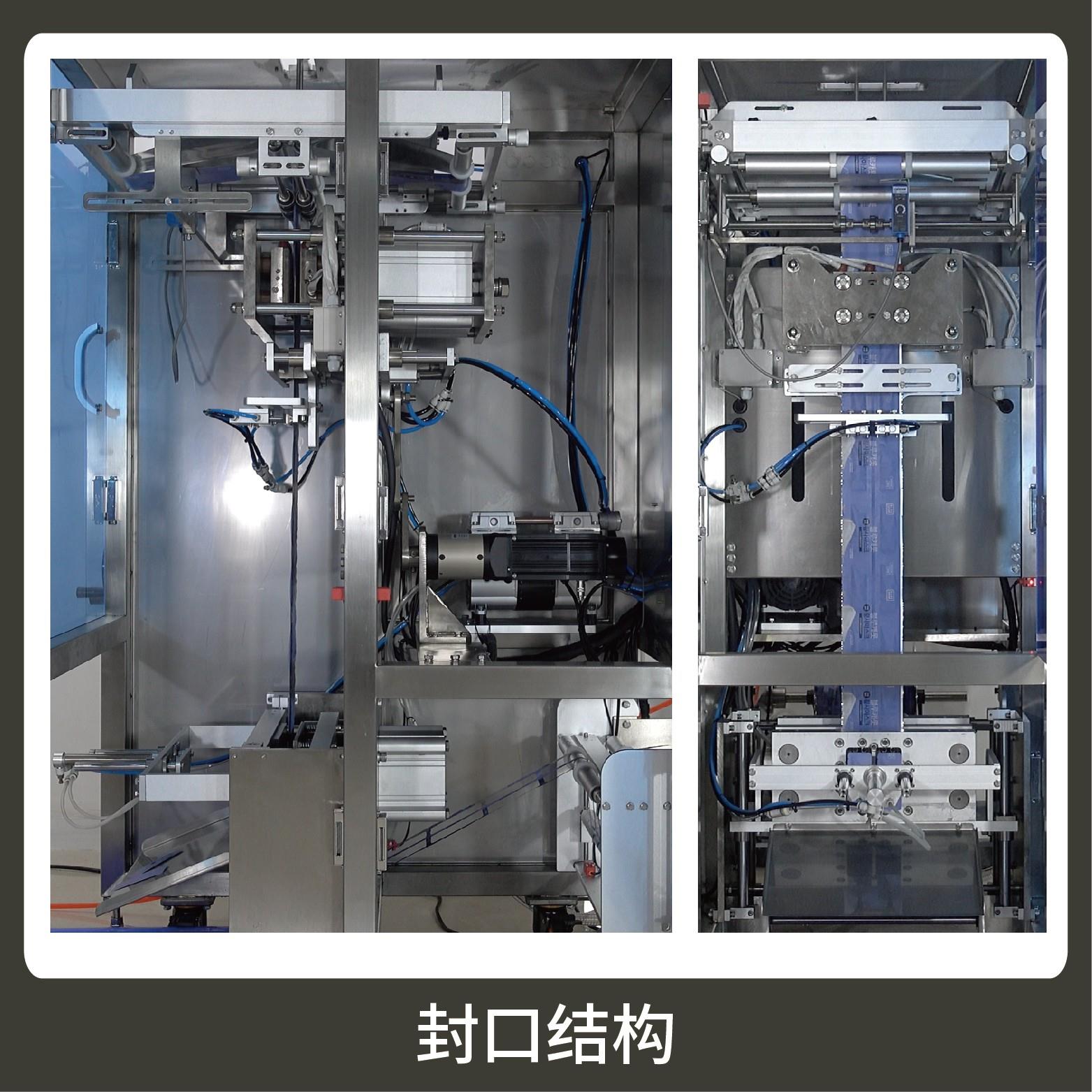

封口方式 Sealing Type
四邊封口
Four sides sealing
技術參數
Technical Parameters
計量范圍：1 - 20ml
Measuring Scope
制袋尺寸：長（L）：30 - 180 mm
Bag Size：寬（W）：20 - 85 mm
包裝速度：30 - 70bags / min
Packing speed
外型尺寸：1756 * 1298 * 2327 mm
Dimension ( L* W * H )
整機重量：720 kg
Weight
總功率：220V / 50 - 60HZ / 5KW
Total Power
氣 源：0.6MPA
Gas source
